iT100 Facial Recognition & IRIS Recognition
The iT100 is Iris ID’s newest non-contact biometric offering that features both iris and facial recognition technology. Automatic recognition of iris and/or face is possible. A large capture volume allows for increased flexibility, speed and convenience. Enhanced security through Secure Boot and an open Android Platform provides an opportunity for third party application development.
 |
IRIS/FACE Fusion Operates in Iris only / Face only / and, or, fusion mode. Select and use according to the biometric security environment. |
|---|---|
 |
Non-Contact Authentication Automatically captures faces and iris naturally up to 24 inches or 60 cm. |
 |
Simultaneous Biometric CaptureAutomatically captures dual iris and face at the same distance. |
 |
Countermeasures A proven set of anti-spoof measures that continues to set the standard for the industry is included. |
 |
7inch Multi Touch Display Easy on device setting & user enrollment available with Self-guidance with live images on 7” multi Touch LCD. |
 |
Eye Safety Certified Tested and meets UL, ANSI, and international eye safety standards. |
 |
Automatic Tilt Adjustment The Camera automatically finds user and moves to a location where the user’s eyes and face can be photographed. |
 |
Advanced Security Information is encrypted, Secure Boot platform and Advanced Network security. |
 |

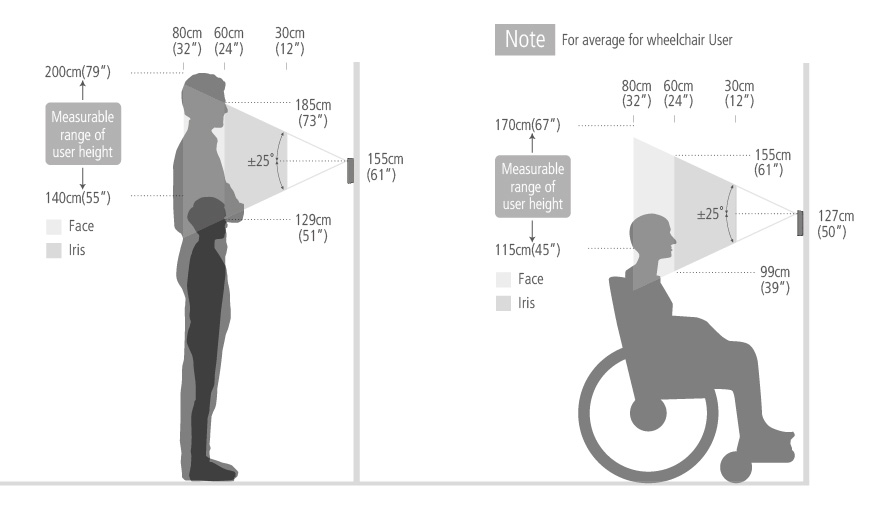

Large Capture Volume Quickly and easily authenticates just by looking at the screen with wide recognition range of Iris 30~60cm(12~24”) & Face 30~80cm(12~32”). |
 |
Open Android Platform Open Android Platform provides for third party application development. |

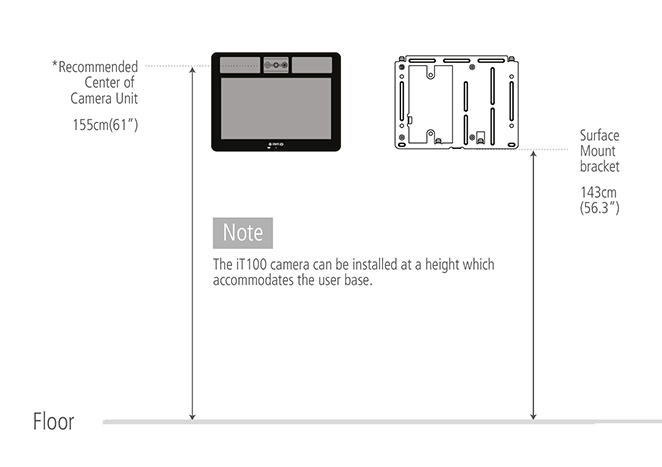

Installation
Tech Specs
| Features | |
| Dimensions (WxHxD) | 7.08” x 5.39” x 1.18” (180mm x 137mm x 30mm) |
| Weight | 1.2lbs (543g) |
| Type | Walk-up |
| Power Input / Consumption | 12 – 24 VDC (auto – +/- 500 mv ripple voltage industry standard) / Max. 30watt |
| OS | Android OS 7.1 |
| User Interface | Self-guidance with displayed images in LCD |
| Operation | Iris and or Face, Face + Iris Fusion |
| User Capacity | Up to 5,000 1:N, 100,000 1:1 users |
| Transactions | Number of transaction logs on device DB: 1M (Iris) / 100,000 (Face) |
| Encryption | AES256 |
| Matching Speed | Less than 1 sec |
| Languages | Support multiple languages and characters simultaneously English & Korean / Additional language pack downloadable |
| Tilt | Auto Range: -25° ~ +25° |
| USB | 1 Port |
| Memory | 16GB |
| Tamper Detection | Yes |
| Algorithm | IrisCapture / DualEyeInfo™ / Countermeasure / Face Matching |
| Real Time Clock | Internal battery |
| Proximity detection | ToF Sensor |
| Connectivity | Ethernet or Wi-Fi (optional) Relay |
| Certifications | CE, FCC, KC, Eye Safety, UL294 |
| Temperature | Operating: 32 ~ 113℉ (0 ~ 45℃) Storage: -4 ~ 194℉ (-20 ~ 90℃) |
| Optics | |
| Distance Sensing | Dual Sensors for high accuracy |
| Iris / Face Camera | 5MP B/W CMOS image Sensor / 5MP Color CMOS image Sensor |
| Image Resolution | ISO Compliant |
| F/# | F/2.4 |
| AF | Iris Camera: Auto Focus Face Camera: Auto Focus |
| Output Image / Template | Iris Template : 512 byte per eye, Face Template 2KB Face Image (Preview): 480 x 640 Face Image (Streaming): 720×1280 Face Image (Capture Mode): 480×640, 960×1280, 1920×2560 |
| Iris Capture IR LED | ANSI ISO Eye Safety certified |
| Operating Range | Iris Camera: 11.8 ~ 23.6“ (300mm ~ 600mm) Face Camera: 11.8 ~ 31.5”max (300mm ~ 800mm) |
| External Interfaces | ||
| Serial | RS232 for external smart card reader | |
| Relay | 1 Dry contact for Door\Gate activation | |
| GPIO | Configurable 2 GPIO’s- Programmed by application developer | |
| USB | USB 2.0 Host for DB up/download | |
| Connectivity | Wired Ethernet or Wireless LAN (Optional) | |
| Wiegand | Wiegand In/Out | |
| Speaker | 27x20mm, 89dB at 1 meter | |
